⚙️ WARN ZEON 10‑S Winch Overview
The ZEON 10‑S is a top-tier 12‑volt electric winch engineered for serious recovery situations. Designed for trucks, Jeeps, and SUVs, it delivers a 10,000 lb (4,536 kg) single-line pulling capacity and comes equipped with 100 feet of synthetic Spydura® rope. As part of the ZEON lineup, it blends rugged performance with premium materials and dependable construction.
🧰 Key Features
🔋 Pulling Power & Motor
-
10,000 lb rated line pull, ideal for mid- to full-size off-road vehicles.
-
Powered by a 12V DC series-wound motor, offering strong torque under load.
-
Features a 3-stage planetary geartrain for smooth and efficient operation.
🪢 Synthetic Rope
-
Includes 100 ft of 3/8″ Spydura® synthetic rope, known for its strength, lightweight characteristics, and resistance to abrasion and UV damage.
-
Equipped with an aluminum hawse fairlead to protect the rope during use.
🛠 Mounting and Control
-
Designed for vehicle-mounted applications with a standard 10 x 4.5″ bolt pattern, making it compatible with many winch bumpers and mounts.
-
Includes a corded remote control with a 12-foot lead for safe and precise operation from a distance.
-
Offers a convertible control pack that can be mounted separately for greater installation flexibility.
💪 Durability and Construction
-
Built with a focus on weather resistance and durability, using corrosion-resistant materials and a sealed construction to withstand the elements.
-
Features a satin-black powder-coated finish with stainless steel hardware for lasting visual appeal and protection.
🔄 Optional Multi-Mount Version
An optional Multi-Mount Kit version is available for those who need winch portability between vehicles or mounting to a hitch receiver. This kit includes:
-
The ZEON 10‑S winch
-
Multi-mount winch carrier
-
Spydura® synthetic rope
-
Hawse fairlead
-
Quick-connect wiring and power leads
-
Corded remote control
📊 Technical Specifications
| Specification | Details |
|---|---|
| Rated Line Pull | 10,000 lb (4,536 kg) |
| Motor | 12V DC, series-wound |
| Geartrain | 3-stage planetary |
| Rope | 100 ft x 3/8″ Spydura® synthetic |
| Control | Corded remote, 12 ft lead |

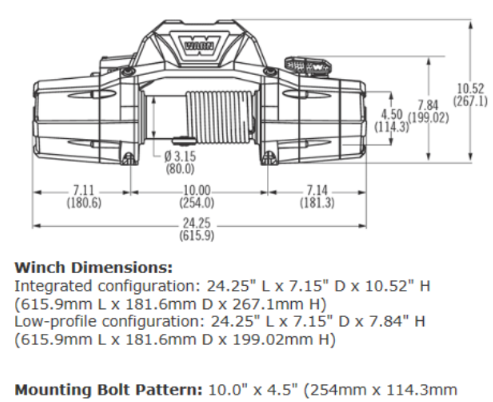

| Mounting Bolt Pattern | 10″ x 4.5″ |
| Brake Type | Automatic mechanical cone brake |
| Fairlead | Aluminum hawse |
| Installation Type | Vehicle-mounted |
| Finish | Powder-coated with stainless hardware |
| Control Pack | Convertible for flexible mounting |
✅ Why Choose the ZEON 10‑S
-
Strong and dependable: With 10,000 lbs of pulling strength, it’s ready for tough recovery jobs.
-
Synthetic rope standard: Lightweight and safe, Spydura® offers excellent handling and durability.
-
Built to last: Weather-sealed construction and premium materials stand up to mud, water, and abuse.
-
User-friendly operation: Long lead remote control and flexible mounting options improve usability.
In Summary
The WARN ZEON 10‑S is a highly capable, premium recovery winch tailored for off-roaders who need both strength and reliability. With synthetic rope, sealed internals, and powerful geartrain design, it delivers consistent performance in the harshest conditions — making it a trusted choice for overland enthusiasts, recovery professionals, and everyday trail users.
