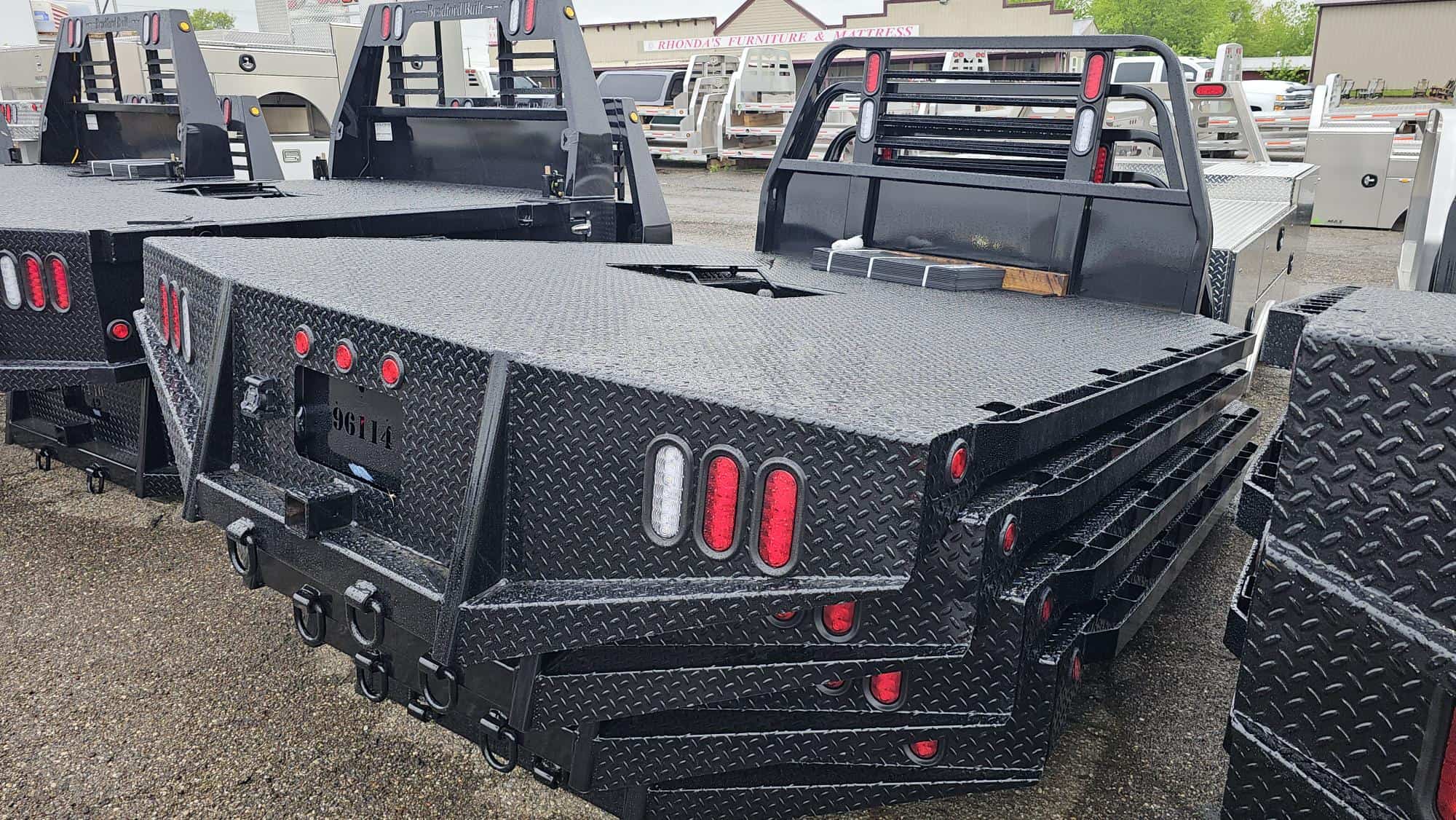

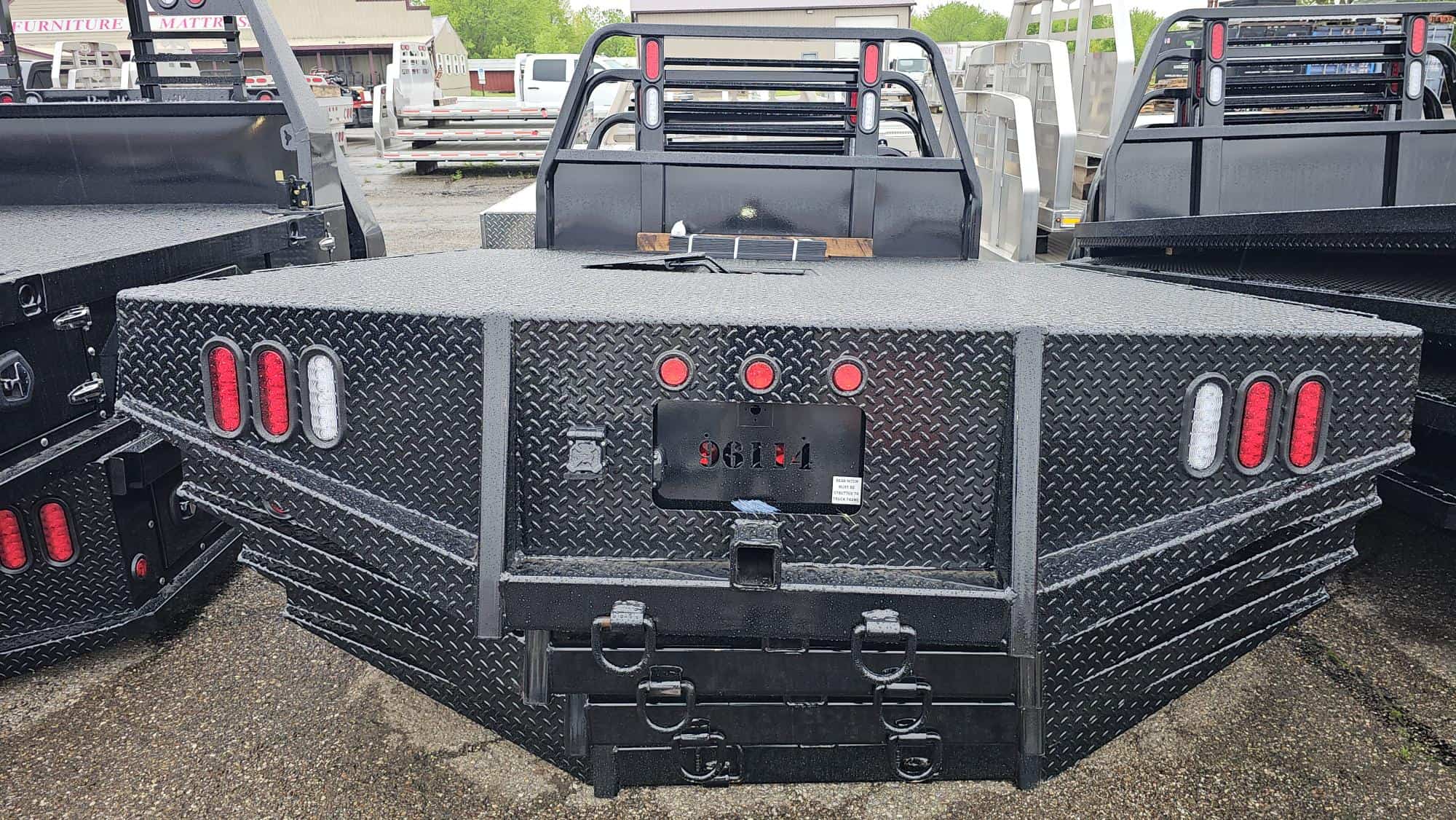

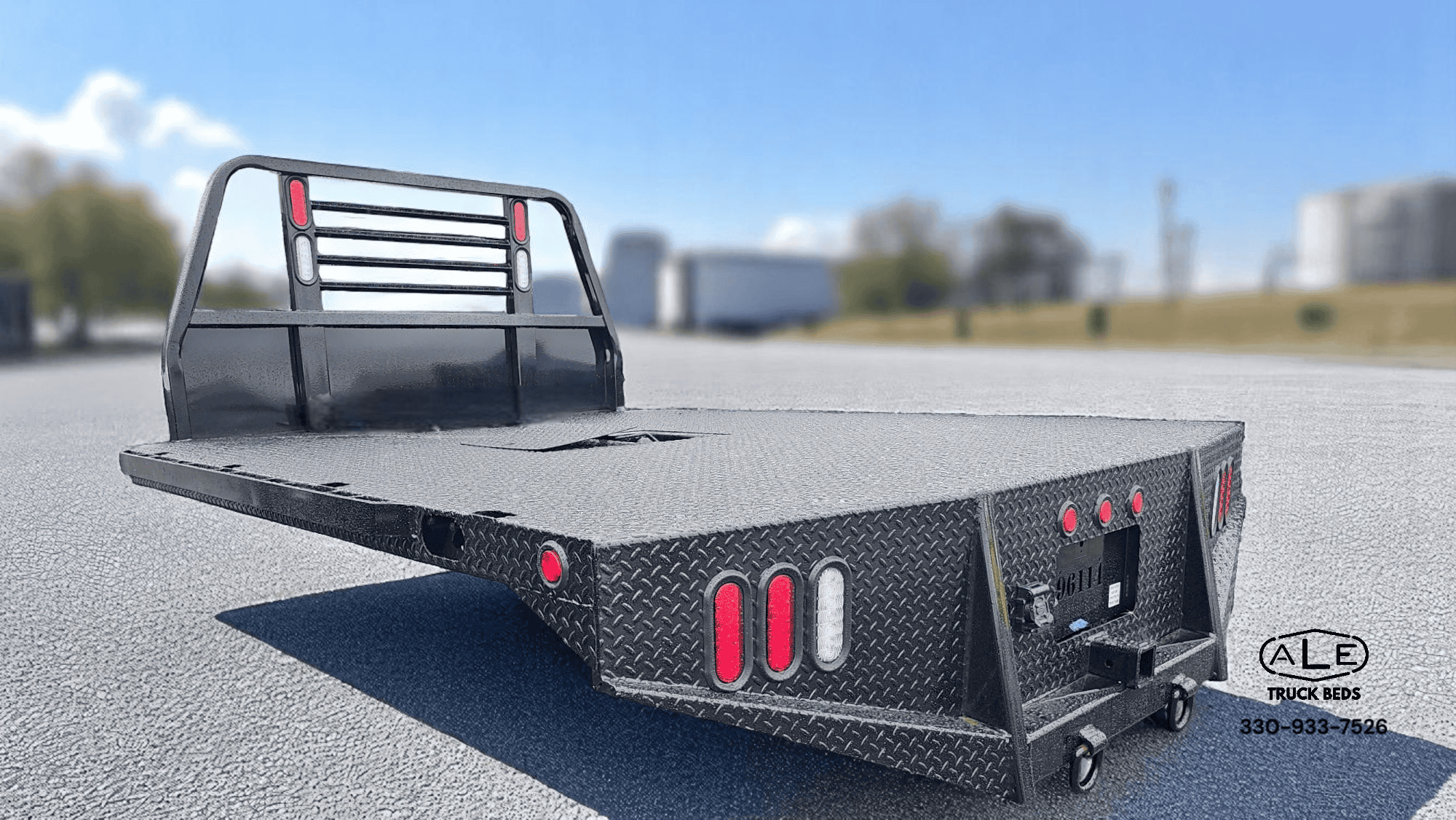

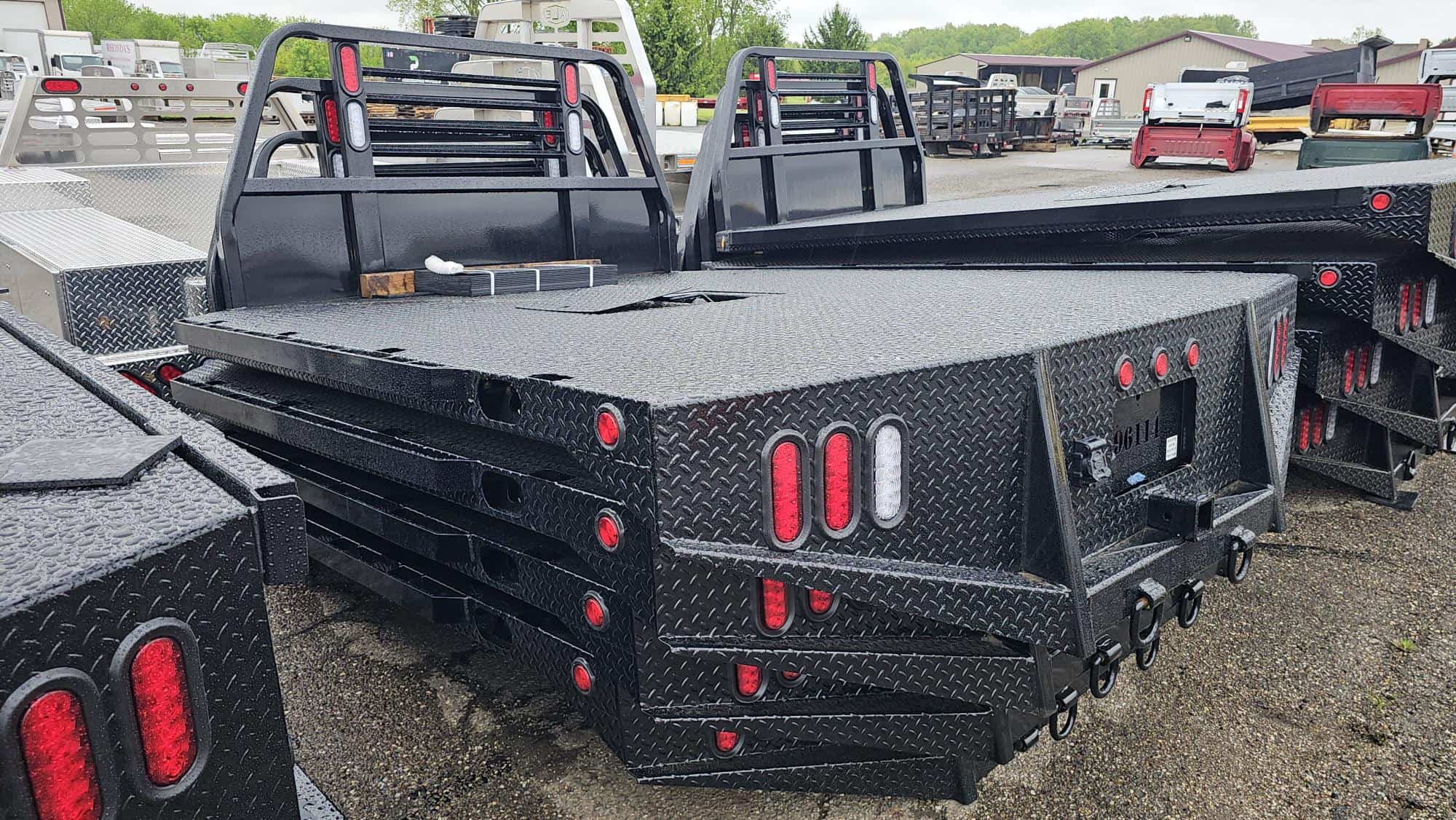

🛠️ Bradford Built Mustang Truck Bed

The Bradford Built Mustang Truck Bed is a rugged, no-frills steel flatbed specifically designed for hardworking professionals. Built from high-grade steel, it offers exceptional strength and durability. Consequently, it’s ideal for handling the most demanding tasks. Key features include:

• Gooseneck and Receiver Hitch:
  A 30,000 lb. rated gooseneck hitch and a 24,000 lb. towing capacity receiver hitch with a 1,800 lb. hitch weight are included. Together, they offer versatile and reliable towing solutions, which are essential for heavy-duty work.

• Formed Headache Rack:
  The Mustang comes with a formed headache rack that provides maximum cab protection. Additionally, it comes standard with integrated stop and reverse lights for added safety and visibility.

• Internal Stake Pockets:
  Built into the deck, these internal stake pockets allow for custom-built sides and versatile cargo management. This feature not only enhances functionality but also improves load security. As a result, professionals can adapt the bed to a variety of hauling needs.

• Optional Weld-On Stake Pockets:
  For additional flexibility, weld-on stake pockets can be added to further expand cargo control options. Moreover, these optional pockets provide a customizable solution for professionals who need adaptable load management.

• Tapered Rear Corners:
  Furthermore, the tapered rear corners improve maneuverability and reduce the risk of damage when navigating tight spaces. This design detail ultimately helps prevent costly mistakes in crowded work environments.

• Black Powdercoat Finish:
  In addition, the black powdercoat finish provides a sleek, professional appearance while offering superior corrosion resistance, even in challenging environments. Over time, this helps maintain the bed’s durability and looks.

• LED Lighting:
  The bed is equipped with LED stop, turn, tail, and backup lights, along with all required clearance lights. As a result, road safety, visibility, and nighttime operation are greatly improved. Additionally, LED lights reduce maintenance and last significantly longer.

⚠️ Hitch Safety Information

Gooseneck Hitch

The Mustang Truck Bed is equipped with a 30,000 lb. rated gooseneck hitch, built for heavy-duty towing. Before each use, make sure your towing setup complies with all safety standards and confirm the trailer is properly connected and secured. Doing so will help ensure safe operation.

Receiver Hitch

The receiver hitch is rated for 24,000 lb. towing capacity with a 1,800 lb. hitch weight.
There is growing demand for heavier and heavier ratings on receiver hitches. However, it’s important to remember:
The more weight you have on the rear hitch, the greater the potential for reduced control on your steer tires.

We won’t tell you that you can’t tow 24,000 lbs. on the 2.5″ receiver hitches of our beds. The bed is built to handle it.
Nevertheless, the key variable is the driver. Haul smart. Always pay close attention to trailer loading. Ensure the driver has the proper experience, especially when towing at full capacity. Without question, smart hauling practices save lives and equipment.

We want you to haul the big jobs—but more importantly, we want you to stay safe.

Note: Previous beds built with 2″ receiver hitches are not rated at 24,000 lbs. Always verify hitch capacity.

🏗️ Strut the Rear Hitch

To safely support the 24,000 lb. receiver hitch rating, the rear hitch must be strutted to the end of the truck’s frame.
Flat or structural metal should be used, and it’s strongly recommended to position it as close to a 45-degree angle as possible.
Fortunately, pre-cut holes are provided in the upright tubes for quick and easy mounting. Alternatively, you may weld directly to the rear bumper if preferred.

This reinforcement is absolutely essential for both safety and long-term durability.
