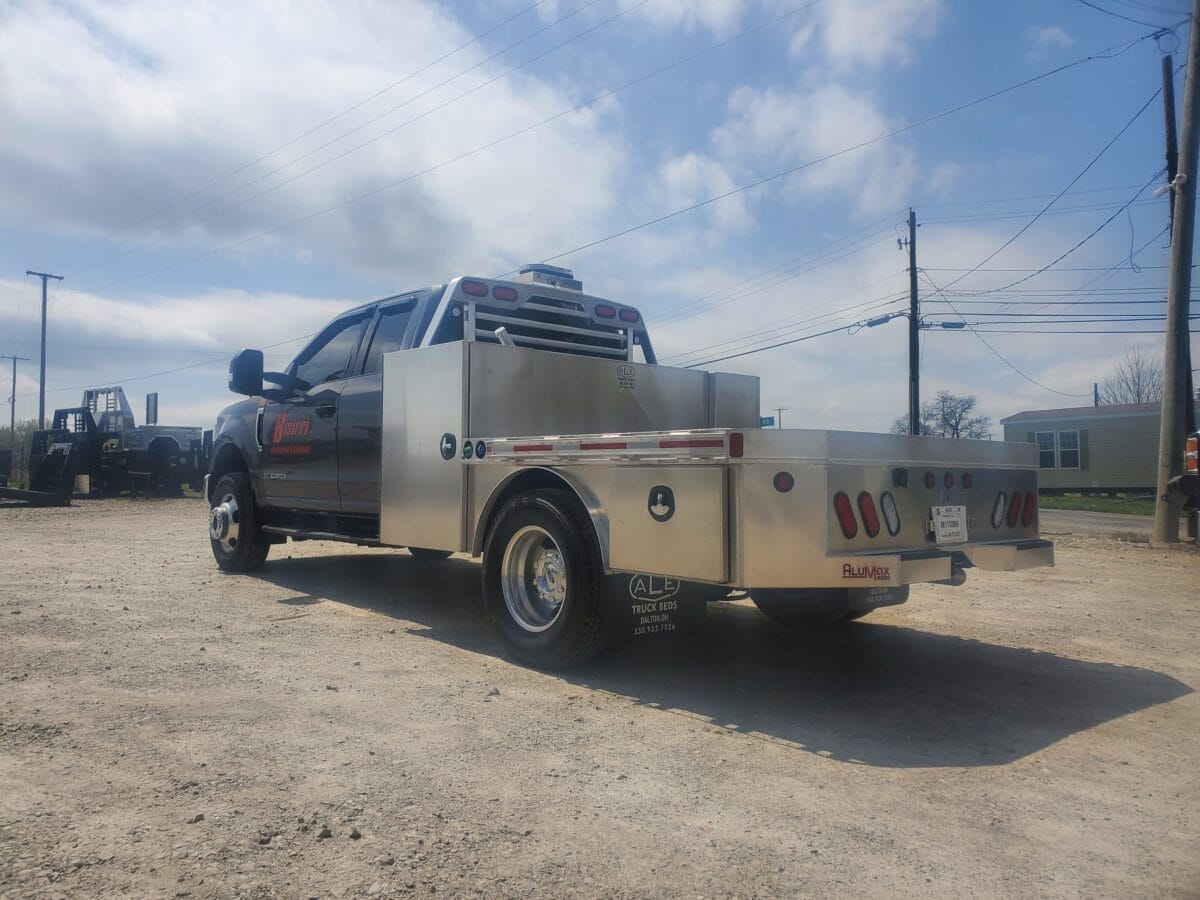

98″ x 104″ Aluminum SBV

FITS DUAL REAR WHEEL PICK UP DELETE

Model# SBV- Skirted, Vertical Box
– 94” Wide Platform, (98” Wide, Including Rub Rail)
– Style#4 Headboard with windows Pipes & (4) Stop /
Turn Lights, Main Frame is 80” Wide, Corner Gussets
Flare out to Full Width of Platform
– 8”x3” Extruded Plank Flooring, Creates a
configuration of 8” on Center Crossmembers & 3/16”
Floor Thickness
– 5” Deep Extruded Side Rails
– Universal Mounting Brackets *Box Delete Pickups*
– 1.75” Deep x 3.75” Wide x 4” High, Extruded Stake
Pockets
– 3” Wide Extruded Rub Rail on Both Sides, with
Reflective Tape in Middle
– Rear Light Skirt with Slanted Lights *Martins Style*
– Angled Rear Bed Corners, 8”x12”
– Standard (Basic) LED Light Package
– Sealed Plug-Together Wiring Harness
– Mud Flaps Brackets Behind Tires
————————————————————-
-Under Body Style Toolbox Package
Round Radius Wheel Opening, with flatbar Flaring
(2) Vertical Boxes in Front of Axle, one on either side,
32” Long x 42” High x 16” Deep
Both Front Vertical Boxes Come with (1) Adjustable
Shelf With Dividers
(2) Boxes in Rear of Axle, one on either side, 17.5”
Long x 9” High x 17” Deep
Skirting & Boxes Manufactured from 1/8” 5052 Material
Flip-down Doors w/ Lanyards
Locking T-handle Latches
